Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

Front Fork

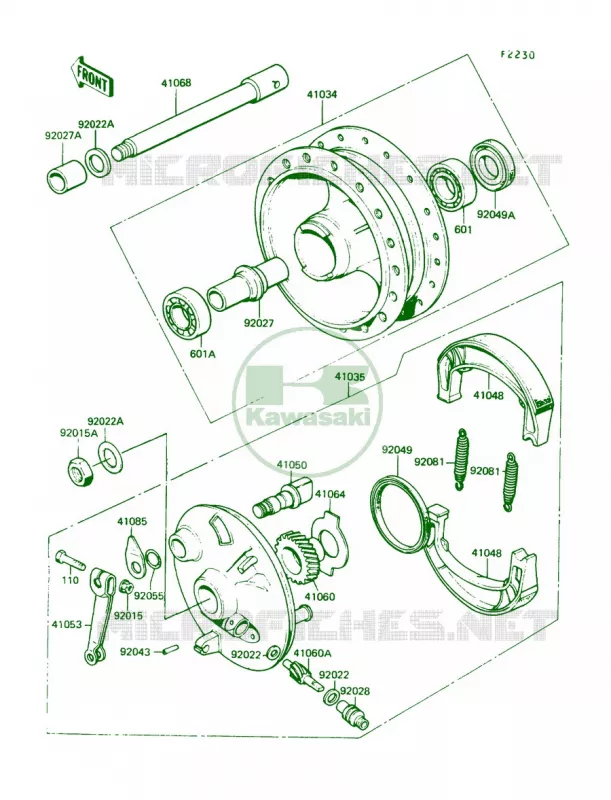

Front Hub FOR KAWASAKI KE100 1987

Fuel Tank

110

(110) 112BA0630

BOLT 6X30

601

(601) 601B6200G

BEARING-BALL #6200G

601A

(601A) 601B6300ZG

BEARING-BALL #6300ZG

41034

(41034) 41034-1047

DRUM-ASSY FR

41035

(41035) 410351291

PANEL-ASSY-BRAKE FR

41048

(41048) 410481085

SHOE-BRAKE

41050

(41050) 41050-018

CAM-BRAKE

41053

(41053) 41053-005

LEVER-BRAKE CAM

41060

(41060) 41059-022

GEAR-METER SCREW 22T

41060A

(41060A) 41060-004

GEAR-METER SCREW 8T

41064

(41064) 41064-010

RECEIVER-SPEEDOMETER

41068

(41068) 410681359

AXLE FR

41085

(41085) 41085-008

INDICATOR BRAKE SHOE

92015

(92015) 41072-007

NUT 6MM

92015A

(92015A) 42045-005

NUT 10MM

92022

(92022) 41063-001

WASHER 5.1X9X0.4

92022A

(92022A) 92022-1558

WASHER 10.5X22X1.6

92027

(92027) 41039-002

COLLAR L=51

92027A

(92027A) 41069-026

COLLAR L=13

92028

(92028) 41062-005

BUSHING SPEEDOMETER CABLE

92043

(92043) 41082-001

PIN SPRING

92049

(92049) 92050-002

SEAL-OIL BRAKE PANEL

92049A

(92049A) 92050-063

SEAL-OIL TC17317

92055

(92055) 92055-004

RING-O BRAKE CAM

92081

(92081) 92081-1766

SPRING BRAKE SHOE

	Part number	Description	Qty
# 110	110G0630 112BA0630	BOLT 6X30	0,70 €(0,60 £)
# 601	601B6200G	BEARING-BALL #6200G	Not available	0,00 €(0,00 £)
# 601A	601B6300ZG	BEARING-BALL #6300ZG	Not available	0,00 €(0,00 £)
# 41034	41034-1047	DRUM-ASSY FR	Not available	0,00 €(0,00 £)
# 41035	41035-1080 410351291	PANEL-ASSY-BRAKE FR	290,71 €(250,25 £)
# 41048	41048-017 410481085	SHOE-BRAKE	11,23 €(9,67 £)
# 41050	41050-018	CAM-BRAKE	19,52 €(16,80 £)
# 41053	41053-005	LEVER-BRAKE CAM	12,30 €(10,59 £)
# 41060	41059-022	GEAR-METER SCREW 22T	29,11 €(25,06 £)
# 41060A	41060-004	GEAR-METER SCREW 8T	21,59 €(18,59 £)
# 41064	41064-010	RECEIVER-SPEEDOMETER	6,48 €(5,58 £)
# 41068	41068-039	AXLE FR	Not available	0,00 €(0,00 £)
# 41085	41085-008	INDICATOR BRAKE SHOE	9,31 €(8,01 £)
# 92015	41072-007	NUT 6MM	2,42 €(2,08 £)
# 92015A	42045-005	NUT 10MM	5,03 €(4,33 £)
# 92022	41063-001	WASHER 5.1X9X0.4	3,00 €(2,58 £)
# 92022A	92022-1558	WASHER 10.5X22X1.6	Not available	0,00 €(0,00 £)
# 92027A	41069-026	COLLAR L=13	9,17 €(7,89 £)
# 92027	41039-002	COLLAR L=51	Not available	0,00 €(0,00 £)
# 92028	41062-005	BUSHING SPEEDOMETER CABLE	13,91 €(11,97 £)
# 92043	41082-001	PIN SPRING	2,42 €(2,08 £)
# 92049	92050-002	SEAL-OIL BRAKE PANEL	9,58 €(8,25 £)
# 92049A	92050-063	SEAL-OIL TC17317	10,73 €(9,24 £)
# 92055	92055-004	RING-O BRAKE CAM	2,84 €(2,44 £)
# 92081	92081-1766	SPRING BRAKE SHOE	5,48 €(4,72 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the Front Hub of your Kawasaki of 1987. Let us know if you have any questions.
