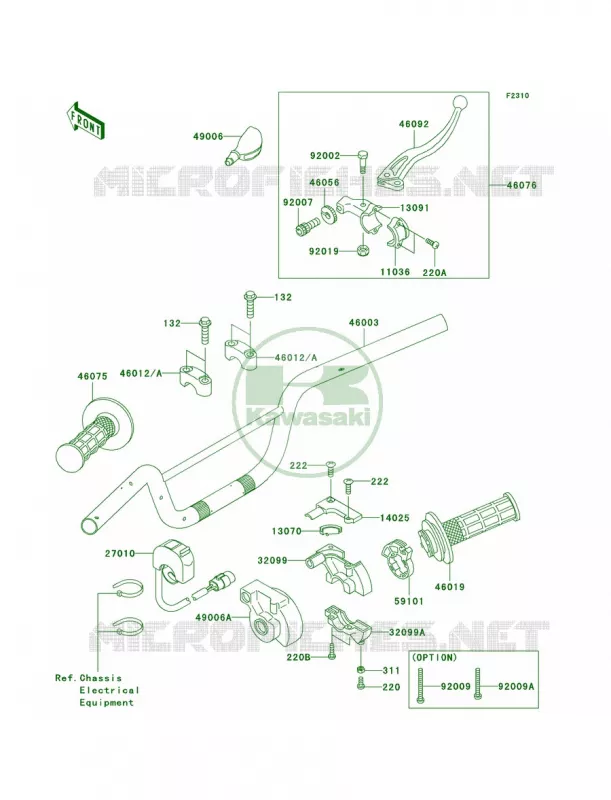

Handlebar FOR KAWASAKI KLX110 2007

Ignition System

132

(132) 132BA0830

BOLT-FLANGED-SMALL 8X30

220

(220) 220AB0512

SCREW-PAN-CROS 5X12

220A

(220A) 220AB0514

SCREW-PAN-CROSS 5X14

220B

(220B) 220AB0518

SCREW-PAN-CROS 5X18

222

(222) 222E0412

SCREW-CSK-RD-CROS 4X12

311

(311) 311AB0500

NUT-HEX

11036

(11036) 110560150

BRACKET-A LEVER HOLDER

13070

(13070) 13070-1117

GUIDE THROTTLE PEACE

13091

(13091) 132800354

HOLDER BRAKE LEVER

14025

(14025) 14025-1646

COVER THROTTLE CASE UPP

27010

(27010) 27010-1332

SWITCH ENGINE STOP

32099

(32099) 32099-1036

CASE THROTTLE UPP

32099A

(32099A) 320990045

CASE THROTTLE LWR

46003

(46003) 46003-0056-458

HANDLE P.SILVER

46012A

(46012A) 46012-0011-458

HOLDER-HANDLE UPP P.SILVER

46019

(46019) 46019-1054

GRIP-ASSY THROTTLE

46056

(46056) 46056-006

NUT CABLE ADJUST

46075

(46075) 46075-1024

GRIP LH

46076

(46076) 460760073

LEVER-ASSY-GRIP RH

46092

(46092) 460920590

LEVER-GRIP BRAKE

49006

(49006) 49006-1017

BOOT LEVER HOLDER

49006A

(49006A) 49006-1097

BOOT THROTTLE CASE

59101

(59101) 59101-1104

REEL THROTTLE

92002

(92002) 92002-1150

BOLT LEVER SET

92007

(92007) 46055010

SCREW CABLE ADJUST 7MM

92009

(92009) 92009-1989

SCREW 5X47

92009A

(92009A) 92009-1998

SCREW 5X42

92019

(92019) 92019-008

NUT LOCK 6MM

	Part number	Description	Qty
# 132	132BA0830	BOLT-FLANGED-SMALL 8X30	2,57 €(2,20 £)
# 220	220AB0512	SCREW-PAN-CROS 5X12	2,56 €(2,19 £)
# 220A	220AB0514	SCREW-PAN-CROSS 5X14	1,02 €(0,87 £)
# 220B	220AB0518	SCREW-PAN-CROS 5X18	1,94 €(1,66 £)
# 222	222E0412	SCREW-CSK-RD-CROS 4X12	2,27 €(1,94 £)
# 311	311AB0500	NUT-HEX	0,18 €(0,15 £)
# 11036	11036-1297 110560150	BRACKET-A LEVER HOLDER	13,51 €(11,57 £)
# 13070	13070-1117	GUIDE THROTTLE PEACE	6,31 €(5,40 £)
# 13091	13091-1135 132800354	HOLDER BRAKE LEVER	20,27 €(17,36 £)
# 14025	14025-1646	COVER THROTTLE CASE UPP	6,61 €(5,66 £)
# 27010	27010-1332	SWITCH ENGINE STOP	69,56 €(59,56 £)
# 32099	32099-1036	CASE THROTTLE UPP	26,75 €(22,91 £)
# 32099A	32099-1220 320990045	CASE THROTTLE LWR	14,48 €(12,40 £)
# 46003	46003-0056-458	HANDLE P.SILVER	66,76 €(57,17 £)
# 46012A	46012-0011-458	HOLDER-HANDLE UPP P.SILVER	Not available	0,00 €(0,00 £)
# 46019	46019-1054	GRIP-ASSY THROTTLE	29,35 €(25,13 £)
# 46056	46056-006	NUT CABLE ADJUST	6,24 €(5,34 £)
# 46075	46075-1024	GRIP LH	Not available	0,00 €(0,00 £)
# 46076	46076-1107 460760073	LEVER-ASSY-GRIP RH	57,82 €(49,51 £)
# 46092	46092-1048 460920590	LEVER-GRIP BRAKE	14,84 €(12,71 £)
# 49006	49006-1017	BOOT LEVER HOLDER	13,78 €(11,80 £)
# 49006A	49006-1097	BOOT THROTTLE CASE	12,89 €(11,04 £)
# 59101	59101-1104	REEL THROTTLE	15,06 €(12,90 £)
# 92002	92002-1150	BOLT LEVER SET	4,54 €(3,89 £)
# 92007	92007-1143 46055010	SCREW CABLE ADJUST 7MM	22,14 €(18,96 £)
# 92009	92009-1989	SCREW 5X47	1,37 €(1,17 £)
# 92009A	92009-1998	SCREW 5X42	1,37 €(1,17 £)
# 92019	92019-008	NUT LOCK 6MM	3,32 €(2,84 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Kawasaki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
