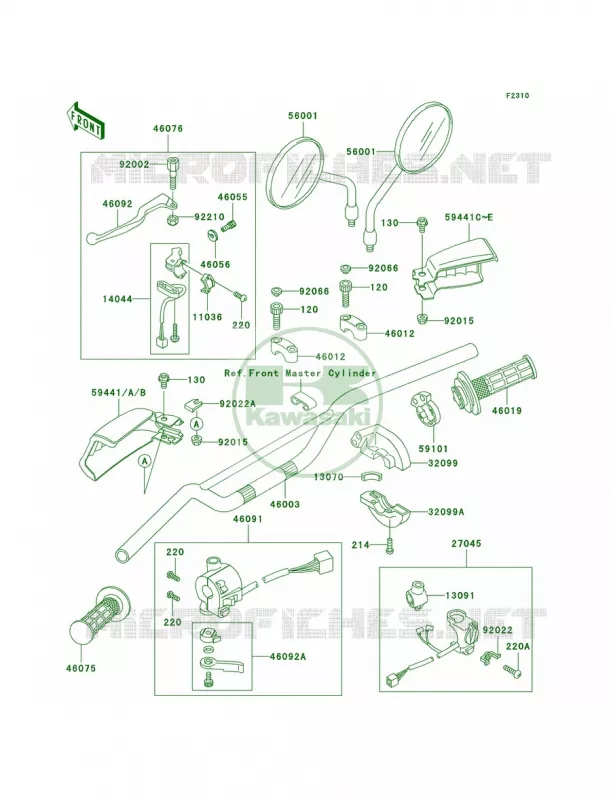

Handlebar FOR KAWASAKI KLR650 2003

Headlights

120

(120) 120CB0830

BOLT-SOCKET 8X30 BLACK

130

(130) 130BB0612

BOLT-FLANGED

214

(214) 220AB0518

SCREW-PAN+-

220

(220) 220AB0514

SCREW-PAN-CROSS

220A

(220A) 220AB0620

SCREW-PAN-CROSS

11036

(11036) 110560150

BRACKET-A LEVER HOLDER

13070

(13070) 13070-1131

GUIDE THROTTLE PEACE

13091

(13091) 13091-1255

HOLDER ENGINE STOP SWITCH

14044

(14044) 14044-1062

HOLDER-CABLE CLUTCH

27045

(27045) 27045-1071

SWITCH-ASSY ENGINE STOP

32099

(32099) 32099-1072

CASE THROTTLE UPP

32099A

(32099A) 32099-1073

CASE THROTTLE LWR

46003

(46003) 46003-1153

HANDLE

46012

(46012) 46012-1102

HOLDER-HANDLE UPP

46019

(46019) 46019-1054

GRIP-ASSY THROTTLE

46055

(46055) 46055-009

SCREW CABLE ADJUST 8MM

46056

(46056) 46056-006

NUT CABLE ADJUST

46075

(46075) 46075-1051

GRIP LH

46076

(46076) 46076-1142

LEVER-ASSY-GRIP CLUTCH

46091

(46091) 46091-1791

HOUSING-ASSY-CONTROL LH

46092

(46092) 460920554

LEVER-GRIP CLUTCH

46092A

(46092A) 46092-1123

LEVER-GRIP CHOKE

56001

(56001) 56001-1204

MIRROR-ASSY

59101

(59101) 59101-1106

REEL THROTTLE

59441A

(59441A) 59441-1073-6C

COVER-HANDLE LH EBONY

59441D

(59441D) 59441-1074-6C

COVER-HANDLE RH EBONY

92002

(92002) 92002-1880

BOLT LEVER SET

92015

(92015) 92015-1603

NUT LOCK FLANGED 6MM

92022

(92022) 92022-1474

WASHER ENGINE STOP SWITCH

92022A

(92022A) 92022-1896

WASHER

92066

(92066) 92066-1216

PLUG

92210

(92210) 92210-0006

NUT LOCK 6MM

	Part number	Description	Qty
# 120	120S0830 120CB0830	BOLT-SOCKET 8X30 BLACK	2,88 €(2,48 £)
# 130	130J0612 130BB0612	BOLT-FLANGED	1,37 €(1,18 £)
# 214	214C0518 220AB0518	SCREW-PAN+-	1,94 €(1,67 £)
# 220	220F0514 220AB0514	SCREW-PAN-CROSS	1,02 €(0,88 £)
# 220A	220F0620 220AB0620	SCREW-PAN-CROSS	1,12 €(0,96 £)
# 11036	11036-1297 110560150	BRACKET-A LEVER HOLDER	13,51 €(11,63 £)
# 13070	13070-1131	GUIDE THROTTLE PEACE	5,66 €(4,87 £)
# 13091	13091-1255	HOLDER ENGINE STOP SWITCH	59,47 €(51,18 £)
# 14044	14044-1062	HOLDER-CABLE CLUTCH	78,65 €(67,68 £)
# 27045	27045-1071	SWITCH-ASSY ENGINE STOP	Not available	0,00 €(0,00 £)
# 32099	32099-1072	CASE THROTTLE UPP	23,80 €(20,48 £)
# 32099A	32099-1073	CASE THROTTLE LWR	23,80 €(20,48 £)
# 46003	46003-1153	HANDLE	117,49 €(101,11 £)
# 46012	46012-1102	HOLDER-HANDLE UPP	Not available	0,00 €(0,00 £)
# 46019	46019-1054	GRIP-ASSY THROTTLE	29,35 €(25,26 £)
# 46055	46055-009	SCREW CABLE ADJUST 8MM	13,78 €(11,86 £)
# 46056	46056-006	NUT CABLE ADJUST	6,24 €(5,37 £)
# 46075	46075-1051	GRIP LH	15,92 €(13,70 £)
# 46076	46076-1142	LEVER-ASSY-GRIP CLUTCH	67,91 €(58,44 £)
# 46091	46091-1791	HOUSING-ASSY-CONTROL LH	135,30 €(116,43 £)
# 46092	46092-1111 460920554	LEVER-GRIP CLUTCH	13,87 €(11,94 £)
# 46092A	46092-1123	LEVER-GRIP CHOKE	11,15 €(9,60 £)
# 56001	56001-1204	MIRROR-ASSY	51,10 €(43,97 £)
# 59101	59101-1106	REEL THROTTLE	11,23 €(9,66 £)
# 59441A	59441-1073-6C	COVER-HANDLE LH EBONY	24,83 €(21,37 £)
# 59441D	59441-1074-6C	COVER-HANDLE RH EBONY	21,56 €(18,55 £)
# 92002	92002-1880	BOLT LEVER SET	15,02 €(12,93 £)
# 92015	92015-1603	NUT LOCK FLANGED 6MM	3,00 €(2,58 £)
# 92022	92022-1474	WASHER ENGINE STOP SWITCH	2,52 €(2,17 £)
# 92022A	92022-1896	WASHER	2,64 €(2,27 £)
# 92066	92066-1216	PLUG	3,00 €(2,58 £)
# 92210	92210-0006	NUT LOCK 6MM	1,68 €(1,45 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Kawasaki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
