CarburetorCA FOR KAWASAKI KLR650 2013

Rear Master Cylinder

220

SCREW-PAN-CROS 4X14

220AA0414

£1,68

Unit Price Incl. Tax

223

SCREW-PAN-WS-CROS, 4X8

223C0408

Not available

225

SCREW-PAN-WSP-CROS 4X18

225AB0418

£1,99

Unit Price Incl. Tax

11044

BRACKET THROTTLE CABLE

110441353

£40,26

Unit Price Incl. Tax

13091

HOLDER NEEDLE JET

130911425

£17,74

Unit Price Incl. Tax

14025

COVER MIXING CHAMBER

140251890

£51,97

Unit Price Incl. Tax

14025A

COVER AIR CUT VALVE

140251903

£38,06

Unit Price Incl. Tax

15004

CARBURETOR-ASSY CVK40

150040072

Not available

16007

SEAT-SPRING DIAPHRAGM VALVE

160071113

£12,73

Unit Price Incl. Tax

16014

SCREW-PILOT AIR

160141083

Not available

16016

PLUNGER

160161087

£62,74

Unit Price Incl. Tax

16017

JET-NEEDLE #6

160170055

£34,73

Unit Price Incl. Tax

16021

SCREW-THROTTLE STOP

160211201

£33,55

Unit Price Incl. Tax

16030

VALVE-FLOAT

160301057

£34,12

Unit Price Incl. Tax

16031

FLOAT

160311077

£36,37

Unit Price Incl. Tax

16044

CLAMP FLOAT VALVE

16044007

£3,36

Unit Price Incl. Tax

16187

NEEDLE-JET N6NJ

161870275

Not available

43028

DIAPHRAGM 5.9MM AIR CUT VALVE

430280016

£59,81

Unit Price Incl. Tax

43028A

DIAPHRAGM VALVE

430281062

£168,26

Unit Price Incl. Tax

49019

FILTER-FUEL

490191097

£8,17

Unit Price Incl. Tax

92005

FITTING FUEL T-TYPE

920051112

£9,26

Unit Price Incl. Tax

92009

SCREW 5X10

920091365

£3,94

Unit Price Incl. Tax

92009A

SCREW DRAIN 6X0.75

920091551

£5,95

Unit Price Incl. Tax

92037

CLAMP 12.5MM

920371271

£1,84

Unit Price Incl. Tax

92037A

CLAMP TUBE

920371477

£2,32

Unit Price Incl. Tax

92037B

CLAMP

920371610

£1,26

Unit Price Incl. Tax

92055

RING-O FLOAT CHAMBER

920551222

£11,29

Unit Price Incl. Tax

92055A

RING-O

920551245

£2,89

Unit Price Incl. Tax

92063

JET-MAIN #140

920631013

£8,58

Unit Price Incl. Tax

92063A

JET-MAIN #142

920631016

£8,58

Unit Price Incl. Tax

92063B

JET-MAIN #145

920631017

£8,58

Unit Price Incl. Tax

92063C

JET-MAIN #148

920631324

£8,58

Unit Price Incl. Tax

92063D

JET-MAIN #150

920631330

£8,58

Unit Price Incl. Tax

92064

JET-PILOT #40

920641108

£10,40

Unit Price Incl. Tax

92066

PLUG PILOT AIR SCREW 6.9X2

920661051

£2,71

Unit Price Incl. Tax

92081

SPRING DIAPHRAGM VALVE

920811718

£17,09

Unit Price Incl. Tax

92081A

SPRING AIR CUT VALVE

920811719

£7,67

Unit Price Incl. Tax

92192

TUBE FUEL 6.2X13.2X170

921920453

Not available

92192A

TUBE 5X9X40&20

921920480

Not available

92192B

TUBE L=70

921920588

Not available

92192C

TUBE L=360

921920589

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

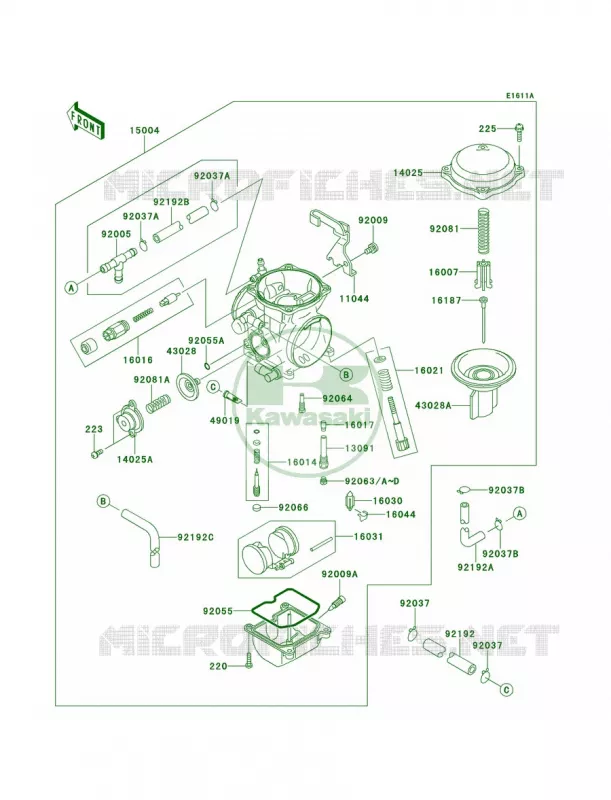

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CarburetorCA of your Kawasaki of 2013. Let us know if you have any questions.
